Here is a working and tested solution for the Huawei Honor X8a Not Charging issue, including charging methods and a USB jumper. When faced with this problem, check or replace the charging connector. If there is an issue after replacing the connector, refer to the provided image for jumper details. Follow the steps below to troubleshoot and resolve this charging problem effectively.
Honor X8a Charging Ways Solution

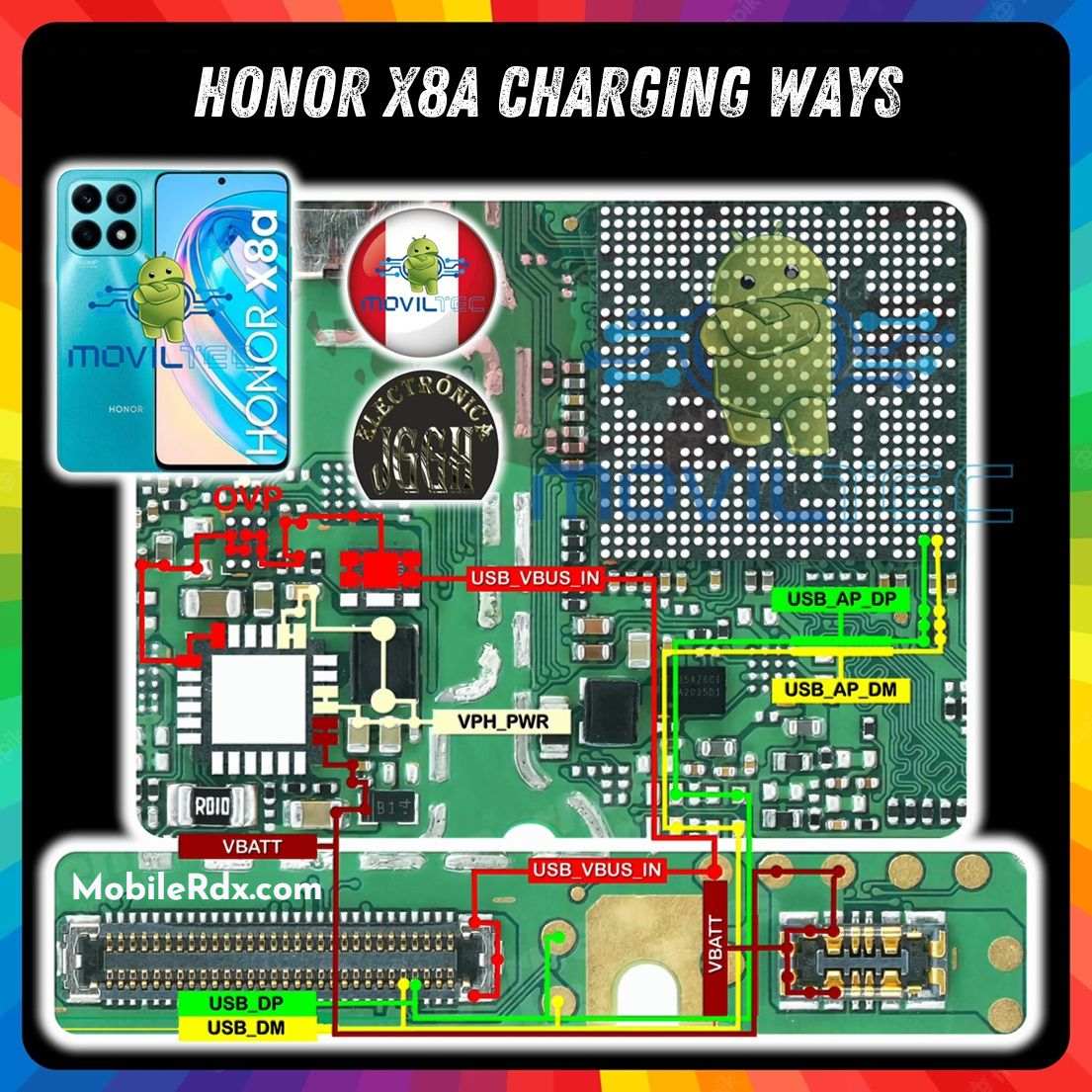

For information about the charging paths and jumpers for the Honor X8a, see the image below. A multimeter is used to check the Honor X8a motherboard’s continuity and make jumpers if required to repair any track damage.
- First, open the mobile
- Then clean the section of the charging connector of the mobile motherboard
- Then remove the old charging connector and add a new connector
Hardware Reasons for Honor X8a Charging Problem
There are four basic hardware-related reasons why your Honor X8a could be charging slowly, and I will explain each of them in turn and in order of increasing probability. The issue could be:
- There is dirt, dust, or debris lodged in the charging port.
- The power adapter is damaged or faulty.
- The USB cable is no longer working properly.
- You are using the wrong power adapter for your phone, or a weak USB port.
How To Repair Honor X8a Not Charging Problem:
Once you have disassembled the mobile phone, proceed with the steps outlined in the diagram above. Check the charging jack and its connection points for any issues. If they are functioning well, try replacing the charger to verify. If the motherboard fails to display accurate readings at the charging points, following dissatisfaction with the mobile phone’s performance, refer back to the steps indicated in the diagram.
Check all parts and tracks carefully, as shown in the Honor X8a diagram, for any indication of corrosion, carbon debris, water damage, or malfunctioning parts. Take extra caution when replacing a motherboard if any parts are damaged. Make proper use of jumpers for missing tracks.
