The post is about to repair Samsung Galaxy A40 A405F Not Charging problem thermistor location Charging Paused Battery Temperature Low Or High, Usually, the faulty thermistor that reads the battery temperature is the most common issue that believed as the culprit of this problem. However, out of what is the cause of this problem, a smartphone that cannot be charged is a fatal problem that you need to fix it immediately.
Samsung A40 A405F charging paused problem is known to be the most common one, and this is mainly because of the fact that a little bit of physical damage or water damage to the charging connector pin is enough to trouble with your phone’s charging connector. However, there could also be other reasons of this problem like a faulty charger or phone’s battery.
This could be hard to believe for Samsung Galaxy A40 A405F device users as Samsung smartphones usually use Li-ion batteries that only problematic at the charging when the temperature is lower than 4°C.
Samsung Galaxy A40 A405F Charging Paused Problems
- Charging Paused Massage
- Battery Temperature Too Low.
- Samsung Galaxy A40 heats up during charging.
- No response when the charger is connected.
Samsung Galaxy A40 A405F Charging Paused Problem Repair Solution:
The Problem is the charging paused or we called a thermistor.
so you need to remove the thermistor or replace it from the other board.

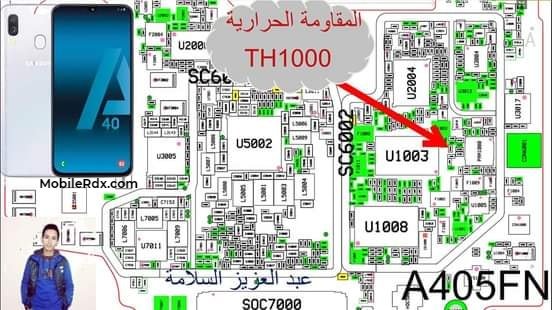

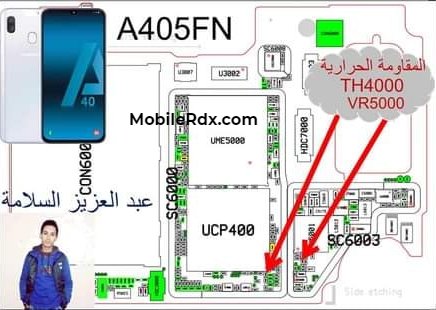

Just Follow the Picture Shown Below.
Samsung Galaxy A40 A405F Charging Paused Solution 2
In order to overcome the water damage problem, all you have to do is to:
Clean charging dock strip and check.
If the problem persists or if the pins are damaged then you need to replace the entire charging dock strip.
Now check the voltage of 1st pin (from right) of charging connector with the help of a Multi-Meter, if there is a problem then re-solder charging pin.
Now check voltage at the capacitor, if it is zero then check whether it is short or not if it then changes the capacitor. If not then:
Check the connection between the charging pin and Capacitor, if the connection is broken re-solder it or place a jumper.
The charge is provided to the Samsung Galaxy A40 A405F board via Capacitor.
If you have further questions please leave a comment.
