Samsung I9000 Touch Screen Jumper Pin Ways
Samsung I9000 Touchscreen Ways Solution
The solution we provide is the solution for hardware troubleshooting on Samsung GT-I9000 touch screen problem. This will help for wet or water damaged Samsung Galaxy S I9000 touch and type that result to touch screen malfunction.
Just refer to the solution below and do some check up on the highlighted components.
Here’s the Samsung GT-I9000 solution for not working touch screen problem. This solution ma help if you already tried calibrating the touch screen settings, updating or restoring the device flash firmware and replacing the touch sensitivity screen module but the problem still exists.
Samsung I9000 Touch screen problem hardware solution

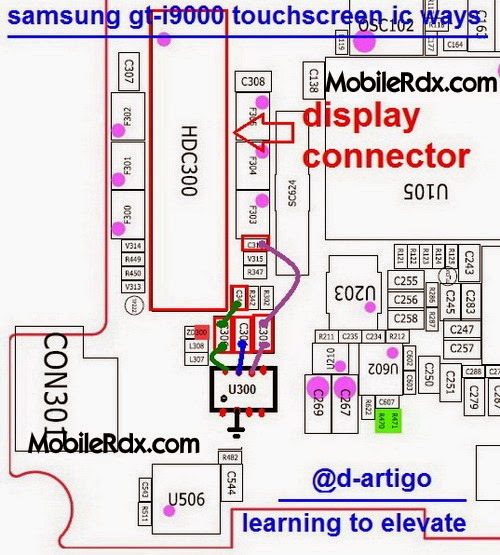

Samsung GT-I9000 touch screen problem repair guide picture
Hints on troubleshooting touch screen failure on Samsung GT-I9000:
This will work if you already tried replacing the touch screen module and restoring the device firmware.
1.Check/clean the touch screen pin connector, re-solder it if necessary.
2. Check/read the touch screen supply voltage (VIO 1.8V) across to the filter coil.
If the voltage is missing check/replace the 0 ohms resistor, or apply a jumper if the line paths is open or cut.
