Samsung C3010S Charging Not Save Charging Ways Solution

Here’s a complete line tracks of  Samsung GT-C3010S charging circuit that may help fix and repair Not charging issues such as Charger No Response and Fake Charging.

Samsung C3010S Charging Ways
Samsung C3010S  Fake Charging Solution

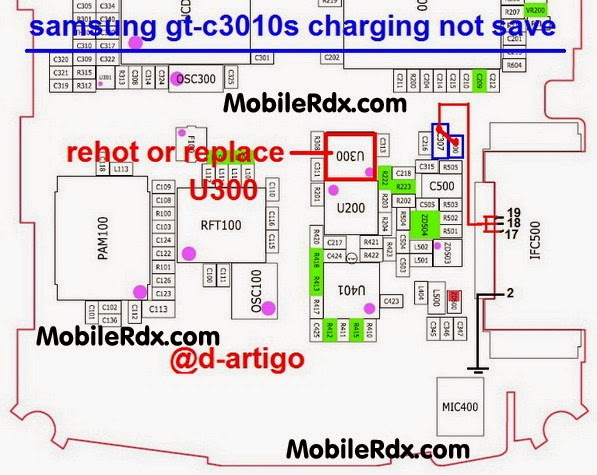

Samsung GT-C3010S Charging Connecter Pin Jumpers ,Ways, Track, Path, Repair Solution

The solution below shows the corresponding components that needs for check up and replacement if found damaged.

Hardware Solution:

But ensure first that the charging pin connector is perfectly clean and not damaged before trying to check or replace the above showed mounted components.
IF the chip fuse, filter coils, chip diodes and capacitors is okay the problem may possibly lies on the Charging IC (U300). Try to reflow/rehea and rework before replacing it. A faulty Charging IC may also result to a charging not save problem, it means that it shows a charging indication on the LCD screen display but the battery does not charge up at all.
